ASUS NUC 13 PRO, ARENA CANYON, TALL KIT (L6), RAPTOR LAKE-P RPL-P 28W (I7-1360P), AX211.NGWG.NV, - NO CORD REQUIRES AC06C05AU
13th Generation Intel?? Core??? i7/i5/i3 with integrated Intel?? Iris?? Xe Graphics or Intel?? UHD Graphics, and Intel vPro?? Technology for selected SKUs.
14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
For professional-grade performance, the 13th Gen Intel Core??? i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel?? Smart Cache, and 35W TDP
For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel?? Ethernet port and Intel?? Wi-Fi 6E (Gig+)
Dual HDMI 2.1and Thunderbolt???4 ports give businesses flexibility to connect up to 4K extended displays
Qualified for 24x7 operation
Model
ASUS NUC 13 Pro Kit
Operating System
Without OS
CPU
Intel?? Core??? i7-1360P Processor (TDP28W)
Chipset
Integrated
Graphics
Intel?? Iris?? Xe Graphics (Core??? i7 & i5)
Memory
Support 2 x SO-DIMM DDR4 2400/2666/3200 MHz
Support 8 GB and 16 GB technology up to 64 GB
Support 8 GB and 16 GB technology up to 64 GB
Storage
1 M.2 PCIe Gen4 M.2 22x80 (key type M) NVMe only
1 M.2 M.2 22x42 (key type B) SATA SSD, PCIe x1 or
USB 3.2 expandability
1 M.2 M.2 22x42 (key type B) SATA SSD, PCIe x1 or
USB 3.2 expandability
Wireless Data Network
Pre-Installed Intel?? Wi-Fi 6E AX211, 2x2, and Bluetooth?? v5.3
LAN
2.5G Ethernet, 10/100/1000/2500 Mbps via Intel?? i226 Foxville Gigabit Ethernet
Core i3, i5 and i7 non-vPro SKUs: i226-V
Core i5 vPro and Core i7 vPro SKUs: i226-LM
Core i3, i5 and i7 non-vPro SKUs: i226-V
Core i5 vPro and Core i7 vPro SKUs: i226-LM
Audio
Realtek audio via 3.5mm stereo headset jack
Supports 4 HD audio streams via 4 Digital ports (over HDMI& DP)
Supports 4 HD audio streams via 4 Digital ports (over HDMI& DP)

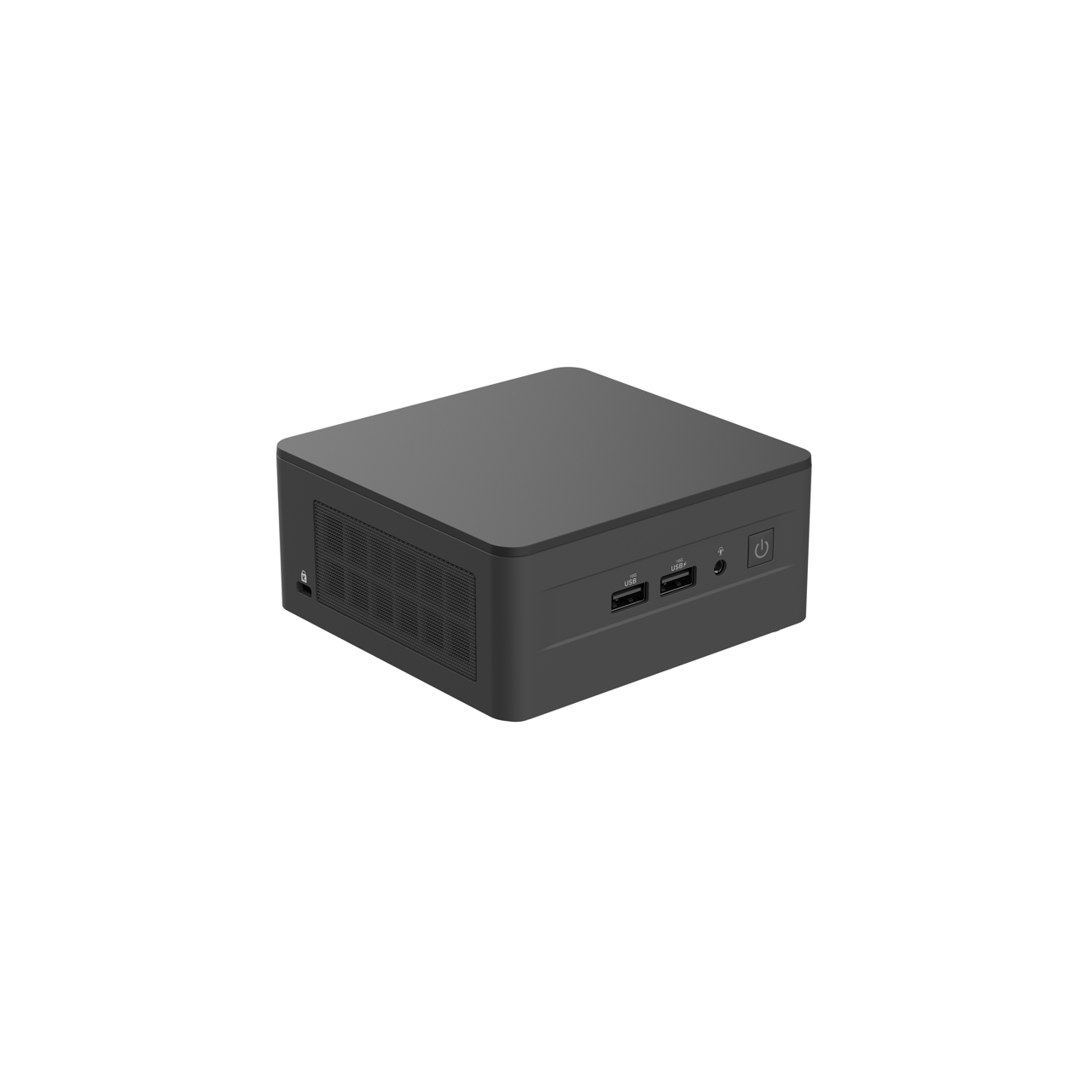

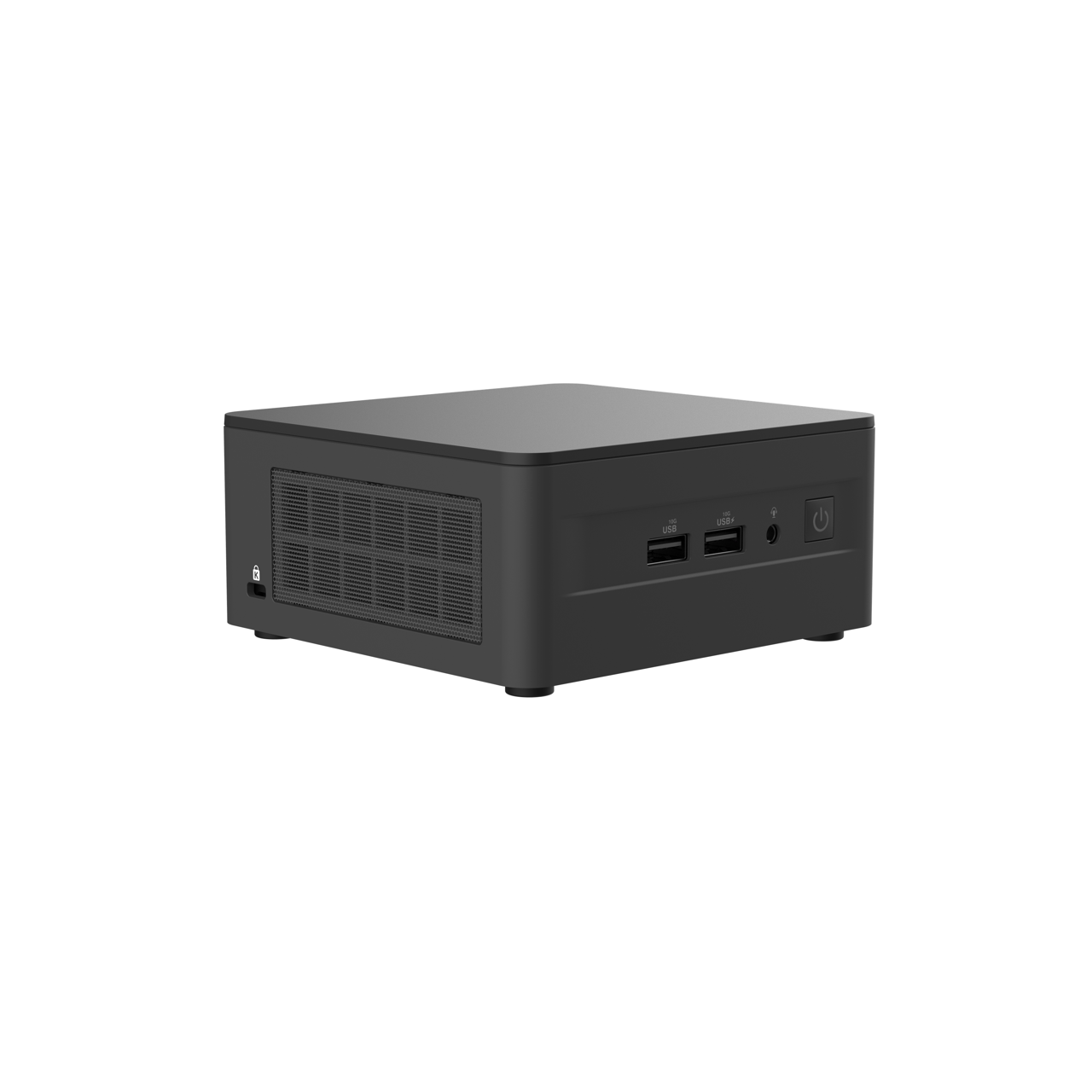

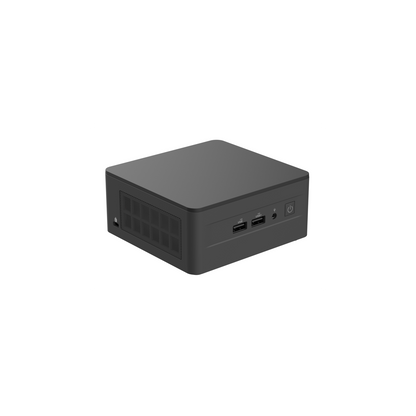

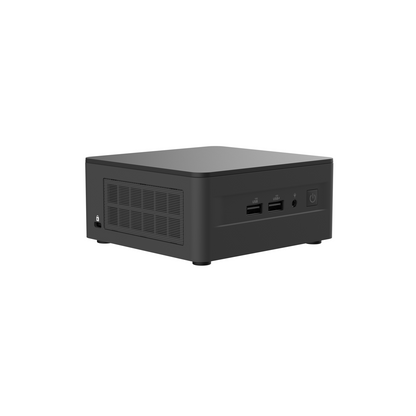

Front(Side) I/O Ports
2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm

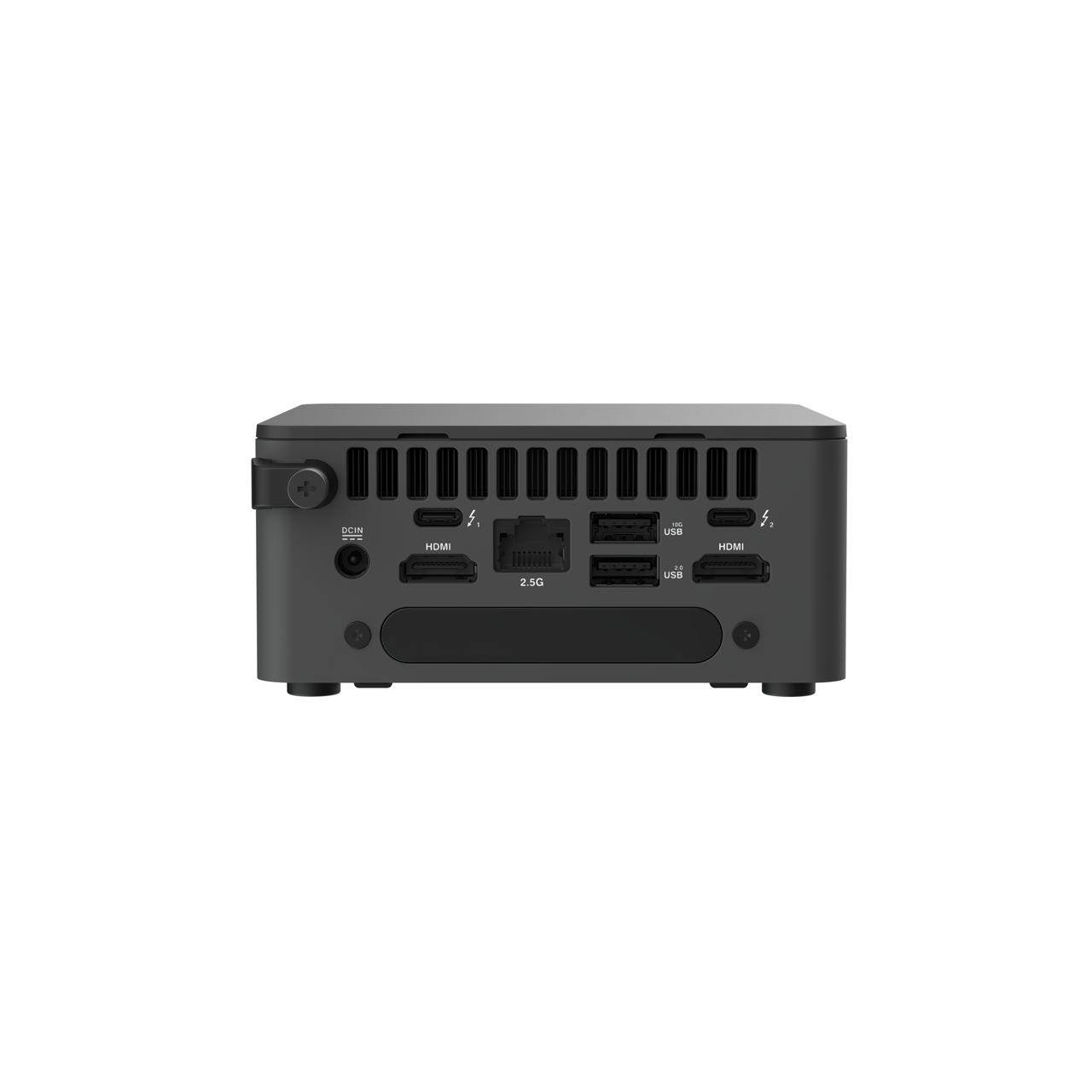

Back I/O Ports
2 x Thunderbolt 4 Type-C Ports
1 x USB 3.2 Gen 2 Type-A
2 x HDMI 2.1 (TMDS) ports
1 x RJ45 LAN Port
1 x DC-in
1 x USB 3.2 Gen 2 Type-A
2 x HDMI 2.1 (TMDS) ports
1 x RJ45 LAN Port
1 x DC-in
Power Supply
120W Power Adapter (U5/U7)
Dimensions (W x D x H)
117mm x 112mm x 54mm
Weight
"H" 0.75 kg(barebone) / "K" 0.51 kg (barebone)
Color
Black
With ASUS NUC logo
With ASUS NUC logo
Accessories
AC Adapter+Power Cord
Warranty Card
Quick Start Guide
VESA Mount
Keyboard+Mouse (Optional)
Ship with VESA mount and screws
Warranty Card
Quick Start Guide
VESA Mount
Keyboard+Mouse (Optional)
Ship with VESA mount and screws
